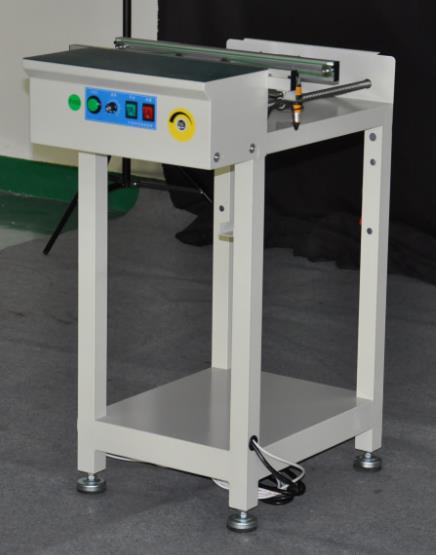

1.0m単軌コンベア GW-BC350-100
1.0m単軌コンベア。生産ライン接続・検査用。精密ボールねじ手動レール調整。SMEMA標準。
Specifications
Model
GW-BC350-100
Dimensions
L1000xW670xH910mm
PCB Size
60x60~450x350mm
Transfer Direction
R-L
Transfer Drive
1-stage + speed control + manual test
Transfer Speed
0.5-15M/min
Transfer Belt
5mm flat belt
Transfer Height
900+50/-20mm
Power
AC220V/50/60HZ/0.1KV
Rail Adjustment
Precision ball screw manual
Communication
Standard SMEMA interface
